Holders

HOLDERS FOR QUICK CHANGE DISCS

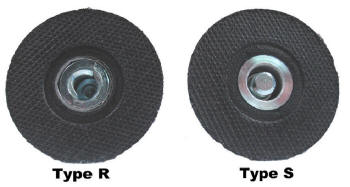

TRADITION RUBBER HOLDERS

KOLTEC rubber holders are a high quality and cost effective version of the traditional pads used industry wide. Available for Type R (Rolloc®) and Type S metal clip disc styles.

TRADITIONAL RUBBER HOLDERS - TYPE R

EDP # KOLTEC # DIAM FLEX Max RPM

151453 945-QL-4S 1” Med 40,000

151454 946-QL-4S 1½” Med 30,000

151455 947-QL-4S 2” Med 30,000

151456 948-QL-4S 3” Med 20,000

151457 949-QL-4S 4” Med 10,000

TRADITIONAL RUBBER HOLDERS - TYPE S

Type S holders sized 2" and under have a smaller male thread connecting to the discs. They cannot be used to with 3" quick change discs. You need to order the same size holder as your sanding disc. This applies to all style Type S holders.

EDP # KOLTEC # DIAM FLEX Max RPM

151462 945-QC-4S 1” Med 40,000

151463 946-QC-4S 1½” Med 30,000

151464 947-QC-4S 2” Med 30,000

151465 948-QC-4S 3” Med 20,000

HEAVY DUTY COMBO 1/4 SHANK & 5/8-11 STYLE

KOLTEC heavy duty style holders are available for both Type R “Rolloc®” style and Type S metal clip style quick change discs. Each holder comes with 1/4” straight shank and can also be used on a 5/8-11 power tool arbor for maximum versatility.

Inserts available to convert holders to fit the following male tool arbors - 5/8-11, M14, 3/8-24, M10x1.25, and M10x1.5

FOR TYPE R ROLLOC® STYLE DISCS

EDP #	KOLTEC #	DIAM	FLEX	Max RPM
151202	563-QL-4S	1½”	Med	25,000
151217	563-QLS-4S	1½”	Soft	25,000
151204	564-QL-4S	2”	Med	19,000
151221	564-QLS-4S	2”	Soft	19,000
151206	565-QL-4S	3”	Med	12,000
151224	565-QLS-4S	3”	Soft	12,000

FOR TYPE S ROLLOC® STYLE DISCS

EDP #	KOLTEC #	DIAM	FLEX	Max RPM
151208	563-QC-4S	1½”	Med	25,000
151215	563-QCS-4S	1½”	Soft	25,000
151210	564-QC-4S	2”	Med	19,000
151219	564-QCS-4S	2”	Soft	19,000
151212	565-QC-4S	3”	Med	12,000
151222	565-QCS-4S	3”	Soft	12,000

LOW PROFILE STYLE HOLDERS

KOLTEC low profile holders are available in both Type R and Type S. They have a thinner profile that is ideal for working in tight places.

LOW PROFILE TYPE R STYLE

EDP #	KOLTEC #	DIAM	FLEX	Max RPM
151200	592-QL-4S	1”	Med	40,000
151203	593-QL-4S	1½”	Med	25,000
151205	594-QL-4S	2”	Med	19,000
151207	595-QL-4S	3”	Med	12,000

LOW PROFILE TYPE S STYLE

EDP # KOLTEC # DIAM FLEX Max RPM

151199 592-QC-4S 1” Med 40,000

151209 593-QC-4S 1½” Med 25,000

151211 594-QC-4S 2” Med 19,000

151213 595-QC-4S 3” Med 12,000
